BENCHES 216.21




DESCRIPTION:

  • Benches complete the range of facilities for personnel pass-through.
  • They are free-standing or attached to the partition panel and covered, without internal storage space
  • They can be combined in size with high cabinets for storing clothes and shoes or sink cabinets

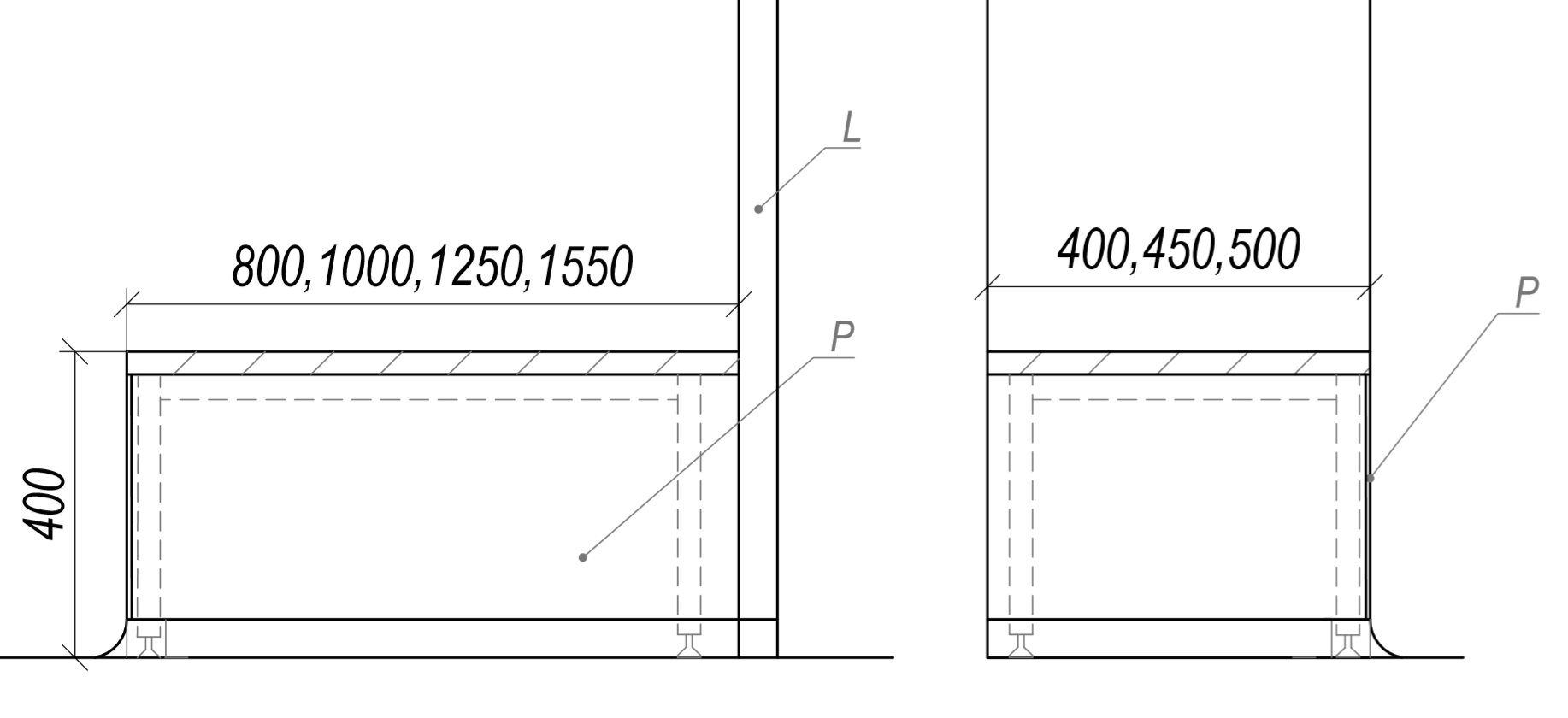

DIMENSIONAL RANGE:

Width (mm) 800, 1000, 1250, 1550
Depth (mm) 400, 450, 500

Benches BL1:

  • Benches for clean areas Class „B“
  • Stainless steel plate fitted to a galvanised metal substructure.
  • Sides which do not touch walls of the room are fitted with additional covering using partition panels on a basic profile with a height of 50 mm.
  • The basic profile is coated with flooring or treated with thermosetting powder coating RAL 9016.

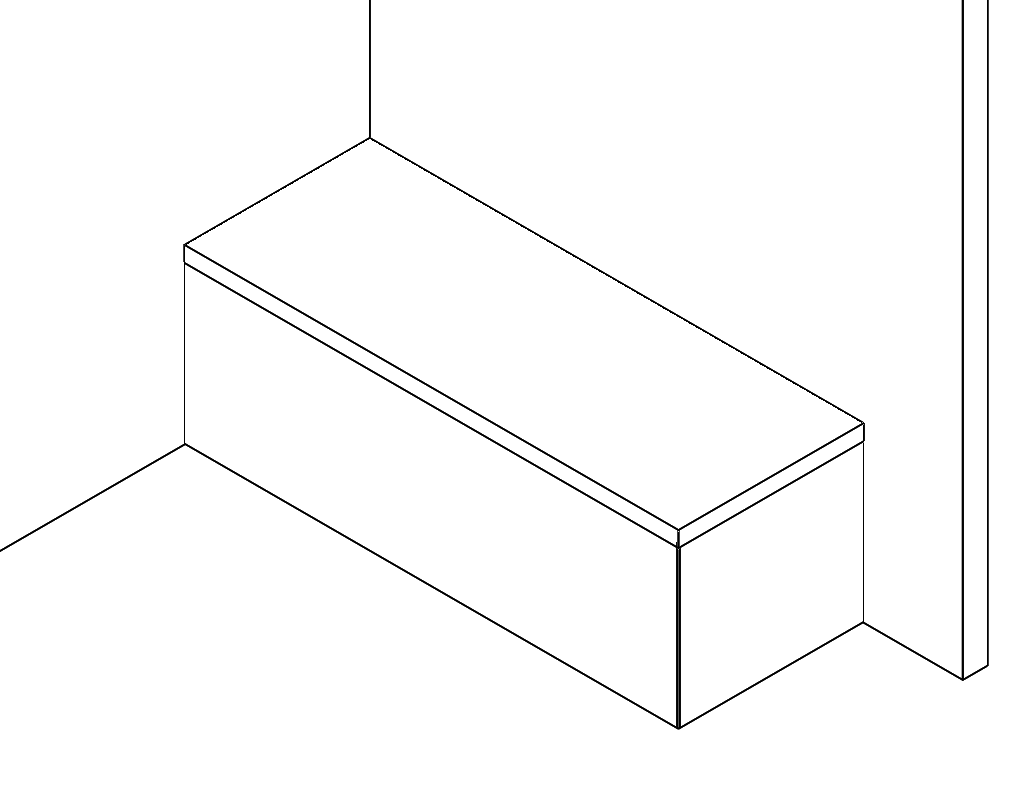

Benches BL1

Benches CL5:

  • Benches for personal pass-trough Class „C, D, CNC“
  • Laminated board with an ABS edge, fitted to a metal structure on adjustable feet.
  • Feet ends are capped to suit the clean areas.
  • The frame is treated with thermosetting powder coat RAL 9016/ 7035

Benches CL6:

  • Benches for personal pass-trough Class „C, D, CNC“
  • Stainless steel plate fitted to a stainless steel structure on adjustable feet.
  • Feet ends are capped to suit the clean areas.
  • The entire bench is made of stainless steel AISI 304, with surface finish SB.

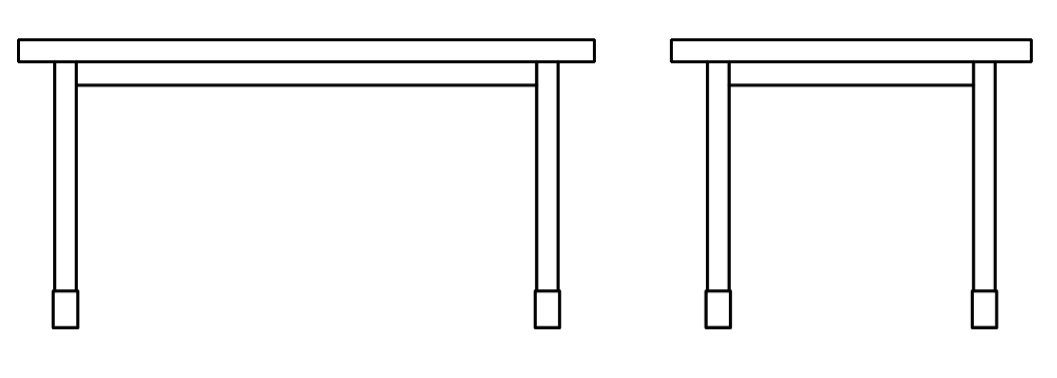

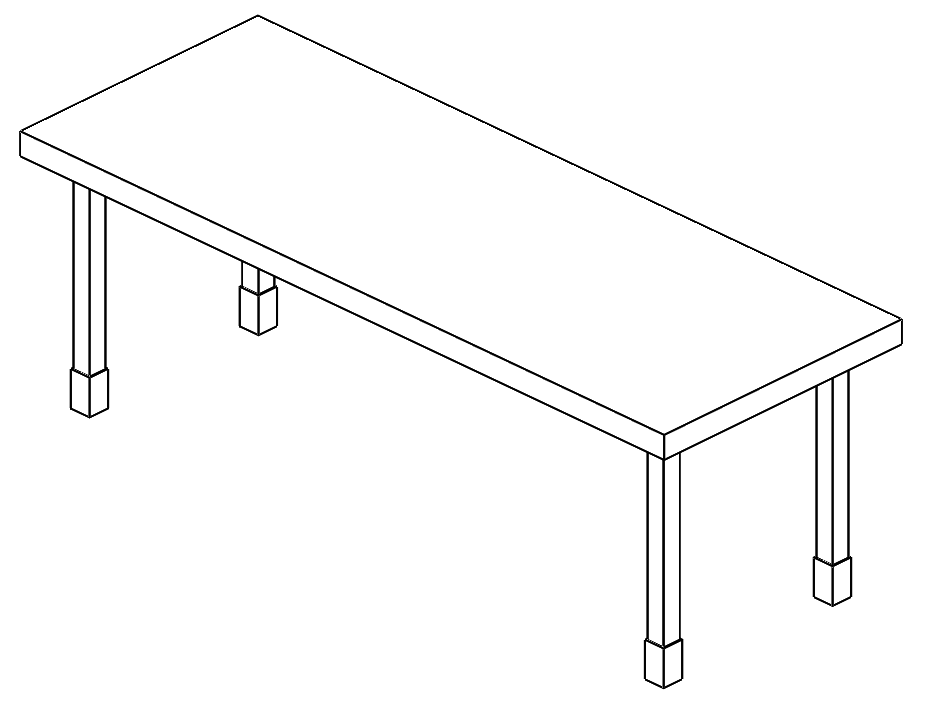

Free-standing banches (CL05, CL06)
