Disinfector, BLOCK® Pure UV 580.01

DESCRIPTION

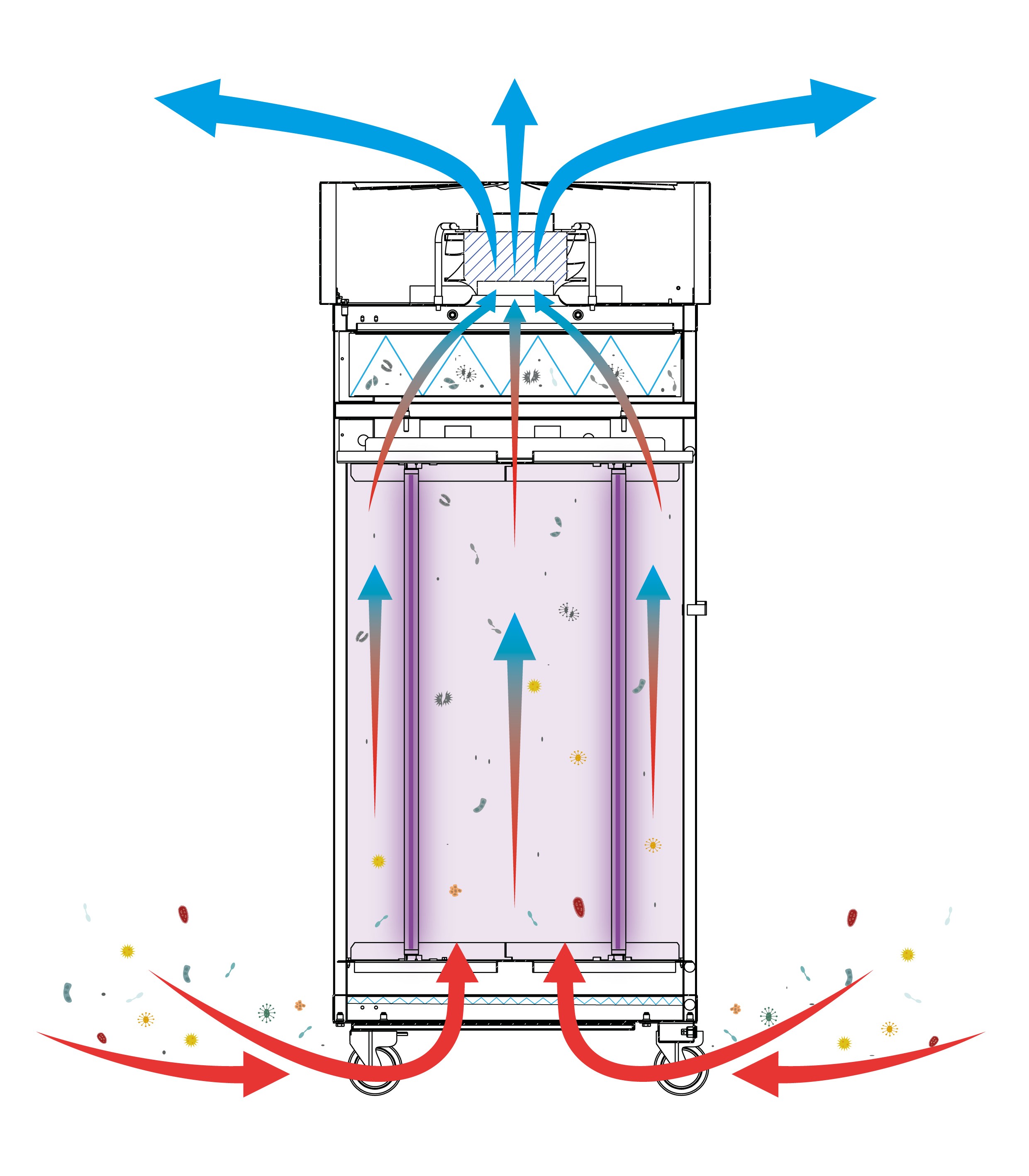

• The disinfictor circulates the air in the room.
• The disinfictor is closed and the air from the room is sucked around the UV lamps.
• Inside the Disinfector, microorganisms are exposed to strong UV radiation for 2 seconds, which kills most of them.
• At the outlet of the Disinfector, the air is filtered by a high-capacity HEPA filter, which with an efficiency of 99.99% captures all particles from the air, including dead and surviving microorganisms.
• This combination of UV radiation and HEPA filtration achieves almost perfect removal of microorganisms from the air.

BENEFITS

• Highly effective method of decontamination of air and surfaces.
• The circulation speed (disinfection) of all air in a room is 5 times per hour.
• Use two modes: night - day(when persons are not present ).
• Mobile devices - the ability to move between rooms.
• Easy operation.

TECHNICAL PARAMETERS

BLOCK^® Pure UV S500

• Recommended for spaces 30 m²
• Dimensions 720x1580x720 mm
• Made of sheet steel with a powder durable varnish
• Air exchange output 500 m³/h
• Power drain 890W
• Maximální pracovní příkon 580W

BLOCK^® Pure UV S900

• Recommended for spaces 60 m²
• Dimensions 720x1580x720 mm
• Made of sheet steel with a powder durable varnish
• Air exchange output 900 m³/h
• Power drain 970W
• Maximální pracovní příkon 760W

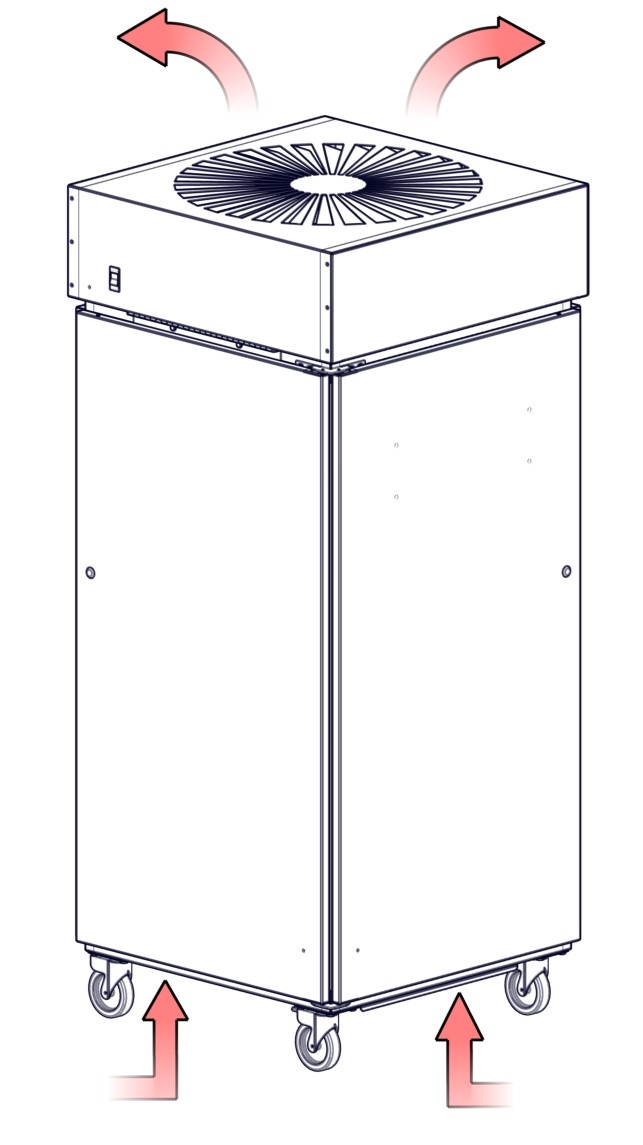

Day mode - Disinfection of air

Under the day mode, the disinfecting of air in a room is performed by circulating of air, which is exposed to UV lamps in the closed disinfector. Inside the appliance microorganisms are exposed to a strong UV radiation throughout 2 seconds, which eliminates most of them. On its output from the appliance air is filtered by a high-capacity HEPA filter, which 99.99 % of particles from this air including both eliminated and surviving microorganisms. This combination of UV radiation and HEPA filtration results in nearly full removal of microorganisms from air. The circulation speed (disinfection) of all air in a room of up to 32 m² (S500 model) and in a room of up to 60 m² (S900 model) is 5 times per hour. Air exchange output is 500 m³/h for the S500 model, or 900 m³/h for the S900 model.

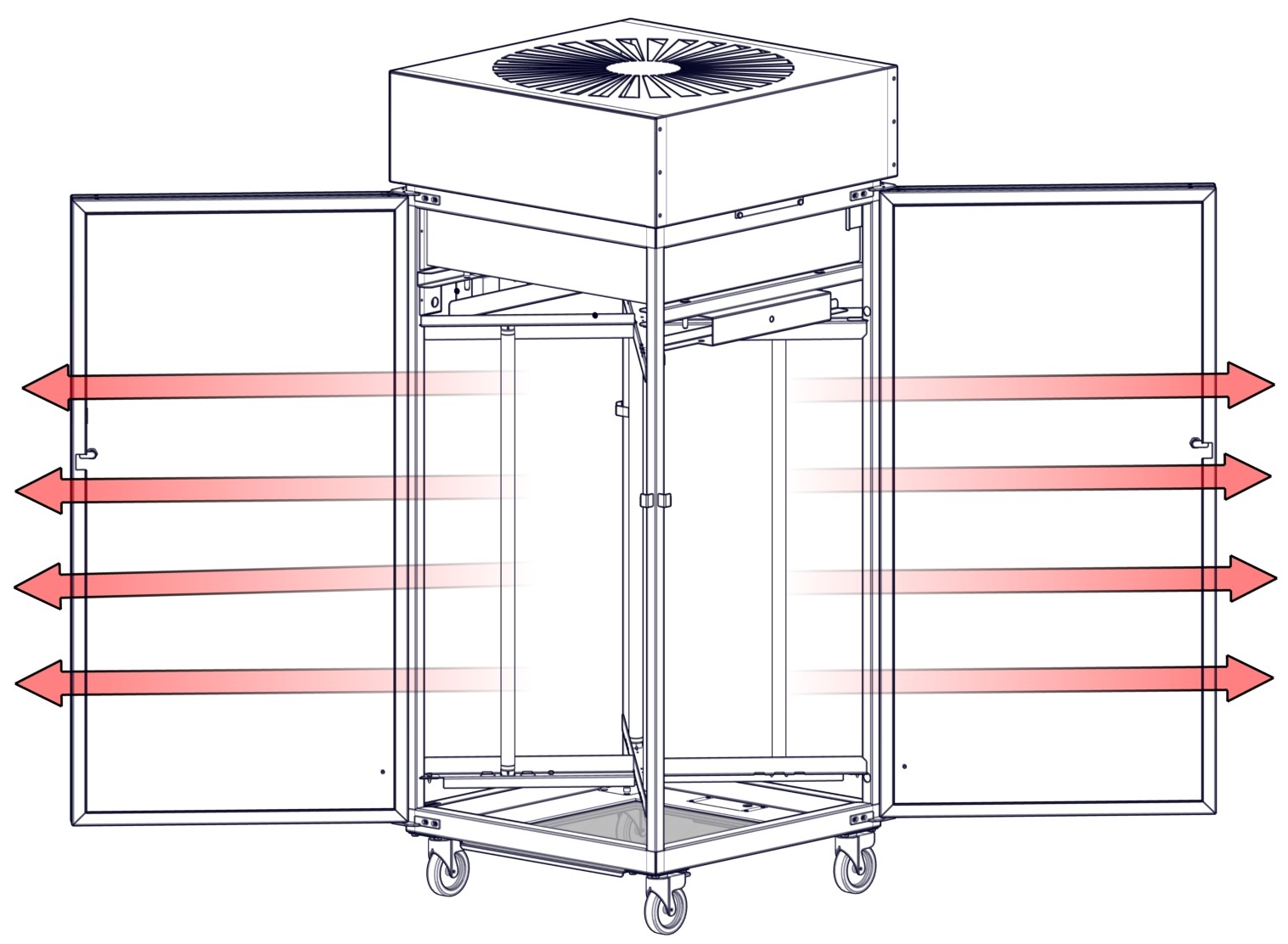

Night mode - Disinfection of surfaceces

Under the night mode the disinfection of air and of surfaces in a room runs when persons are not present and is the most efficient method of disinfection of air and ambient environment. During this mode the disinfector is open and the fan switched off. The disinfector is in the centre of the room, close to the most exposed surfaces that are decontaminated by direct UV radiation during a pre-programmed period. The direct exposure of the total air volume in a room is the most efficient method of air disinfection. The whole air volume is affected, germs on walls and on the floor are destroyed. The practical use of the direct exposure is limited to the rooms where no people and other living organisms are present. Upon entry of any person to the exposed space, the appliance is switched off by the safety sensor.
