Door 510.50


 Door are used to transfer material between chambers for a chamber to the enviroment or from a chamber to another piece of equipment (e. g. fume hude).

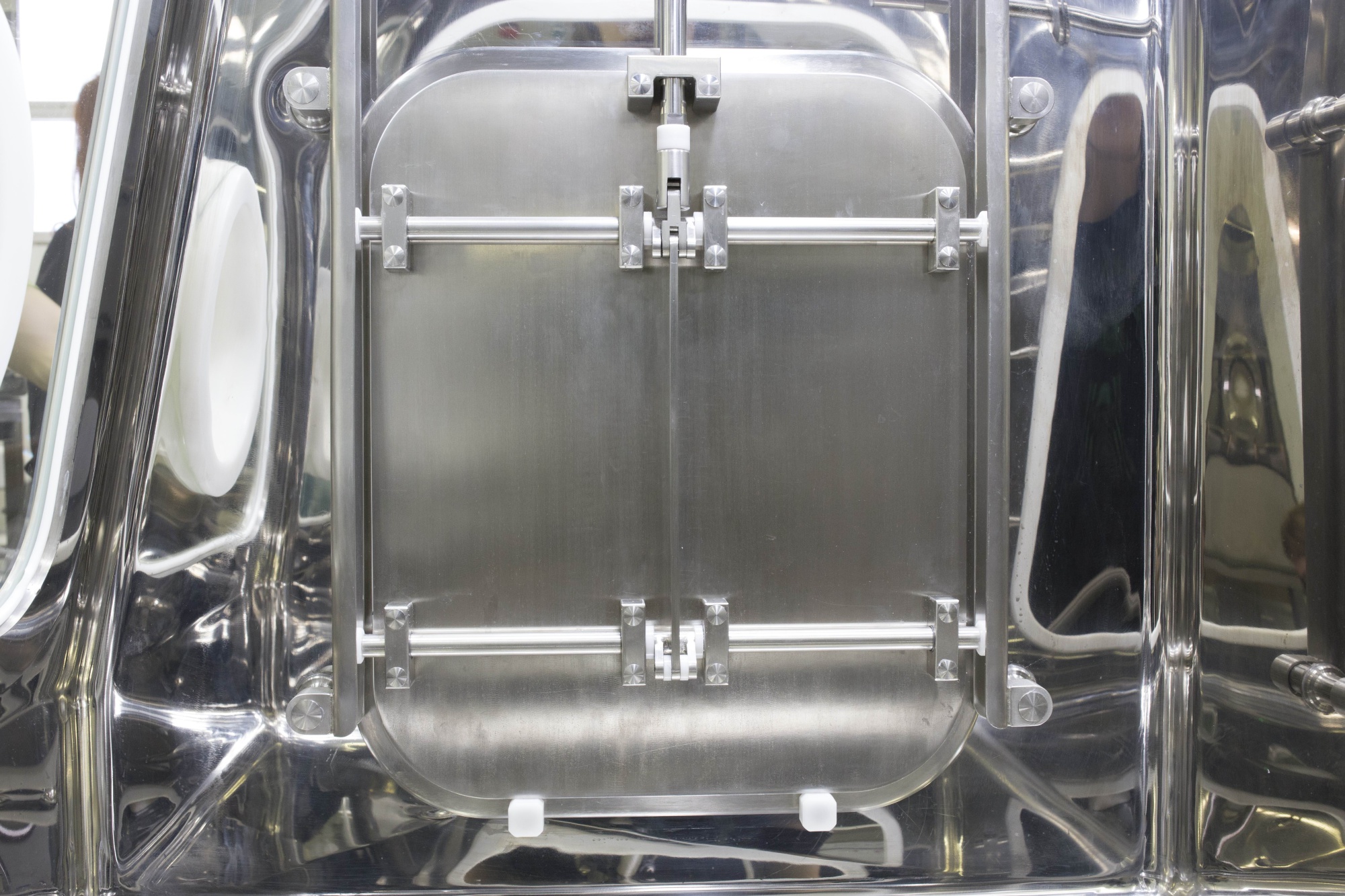

SLIDING DOOR

  • basic dimension (w x h): 350 x 430 mm
  • the choice of dimensions
  • controlled by a foot switch or touch control panel
  • in the vertical direction the door is moved by pneumatic cylinder (compessed air must be brought to the isolator)
  • static or pneumatic seal
  • the door is made of AISI 316L, POM-C compliant with FDA CRF
  • silicone seal is FDA CRF.177.2600 compliant

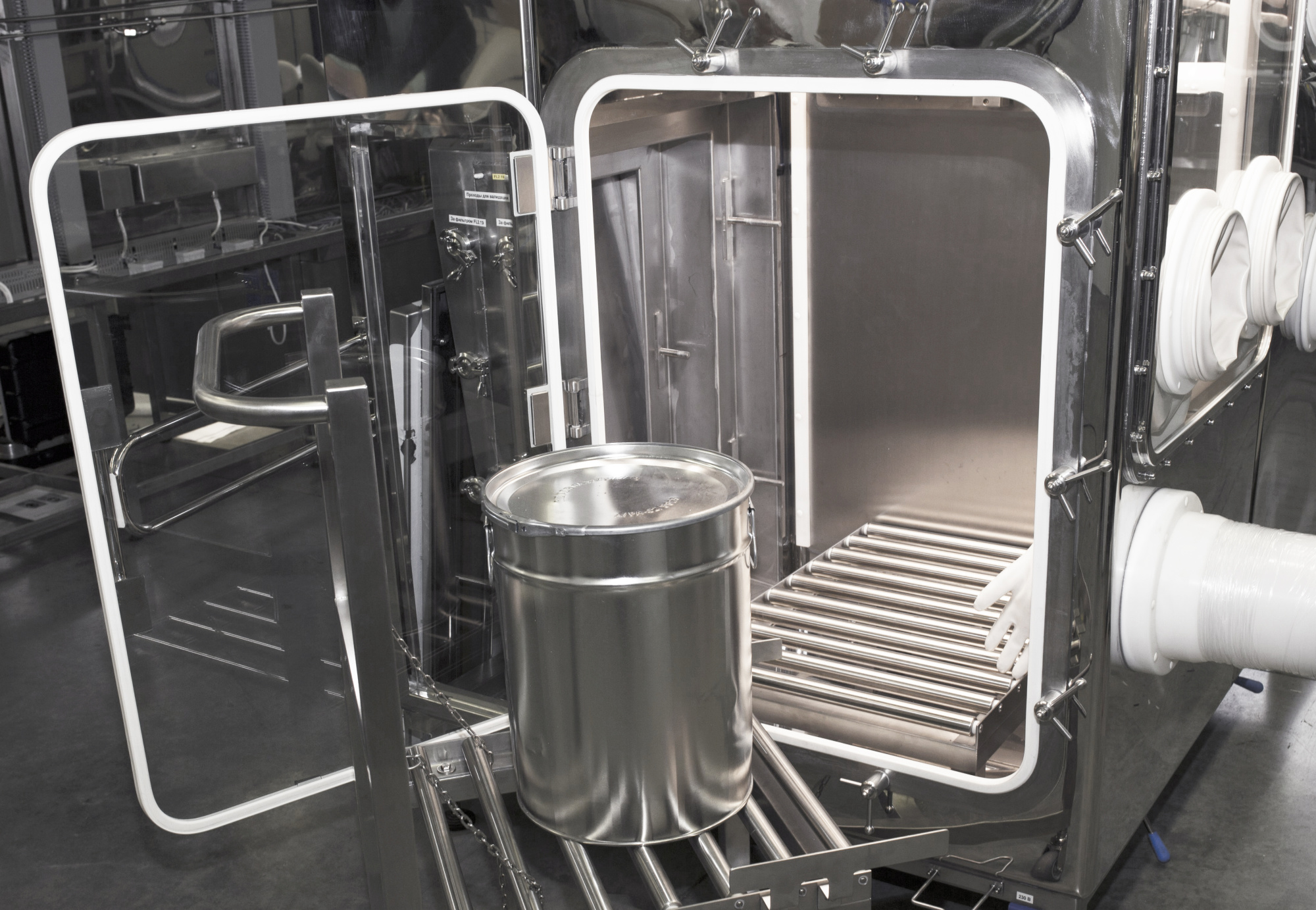

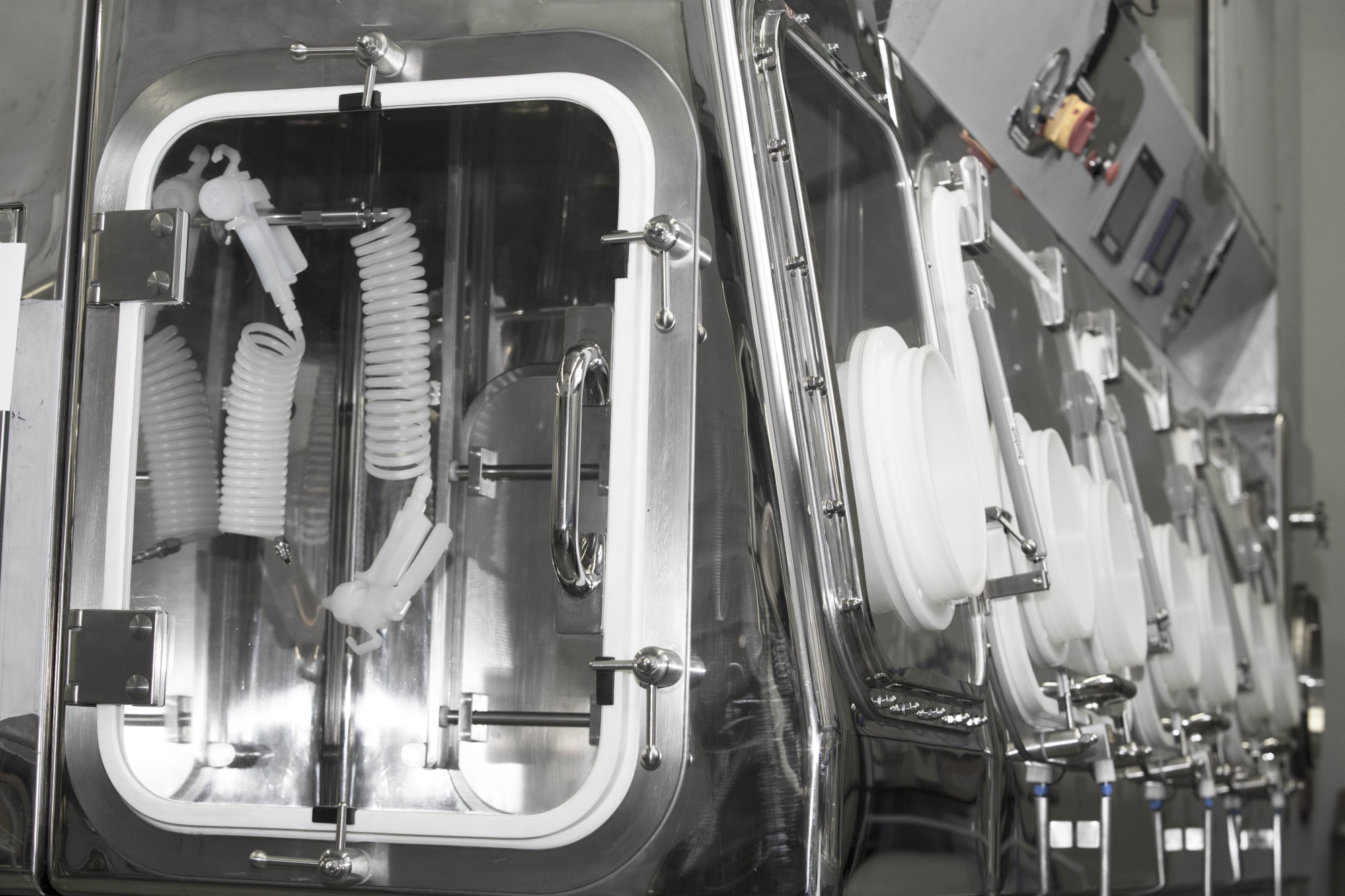

HINGED DOOR

  • basic dimension (w x h): 350 x 430 mm
  • the choice of dimensions
  • door is controlled mechanically by means of a latch closing mechanism
  • left or right hand design
  • the door is made of AISI 316L, safety glass, silicone seal is FDA CRF.177.2600 compliant
  • porty těsněny pomocí
