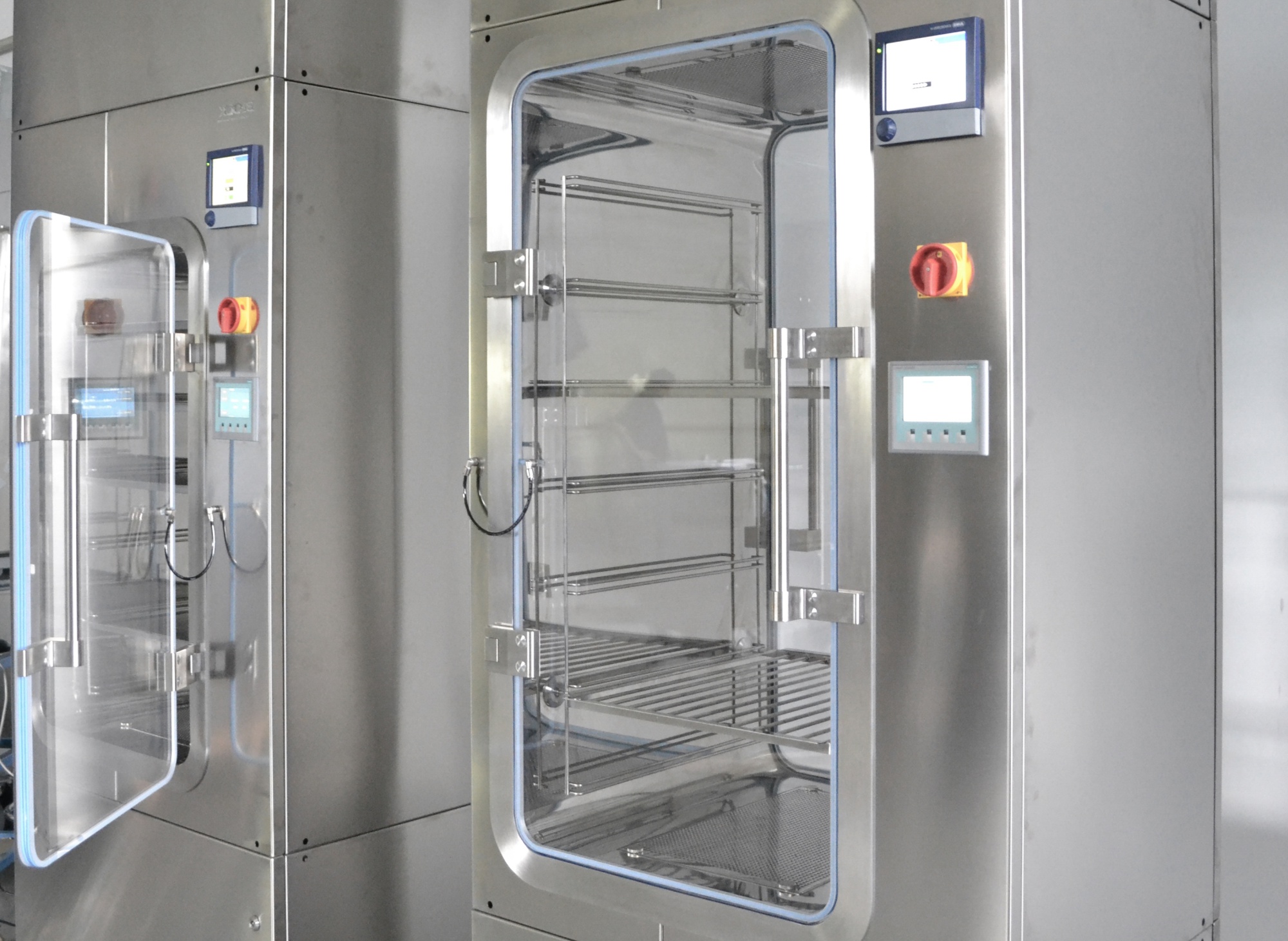

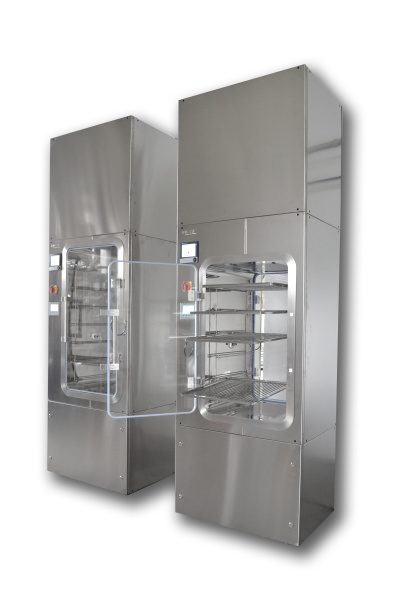

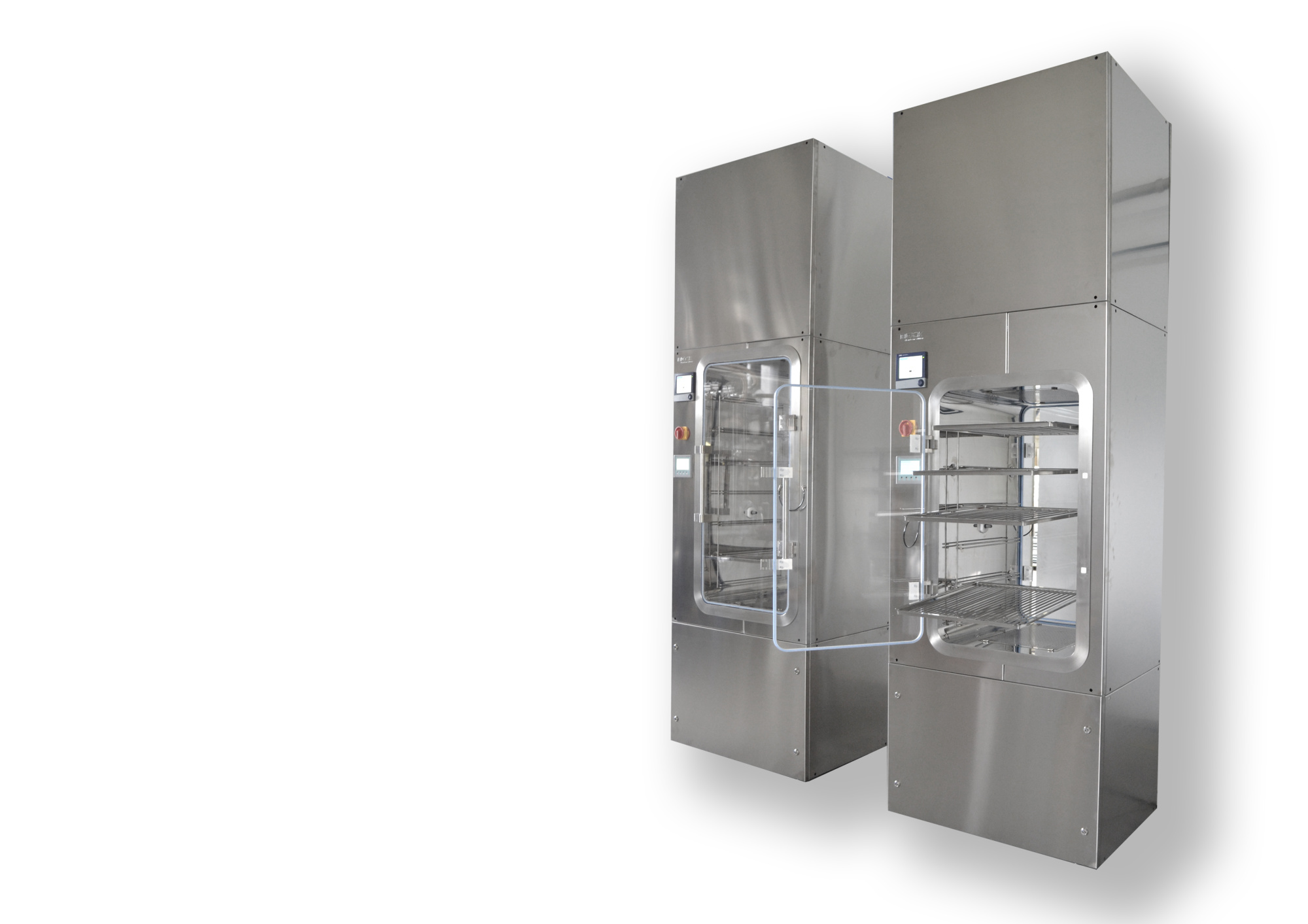

Decontamination pass-through cabin 560.01


Decontamination pass-through cabin is most frequently used as material pass-through to transfer material between rooms with different classes of cleanliness (typically B and C). Equipment and materials are decontaminated in a decontamination cycle using hydrogen peroxide vapour. Hydrogen peroxide vapour generator is part of the pass-through decontamination cabin; the two form a single piece of equipment.

DEVICE DESCRIPTION

  • Integrated VHP generator

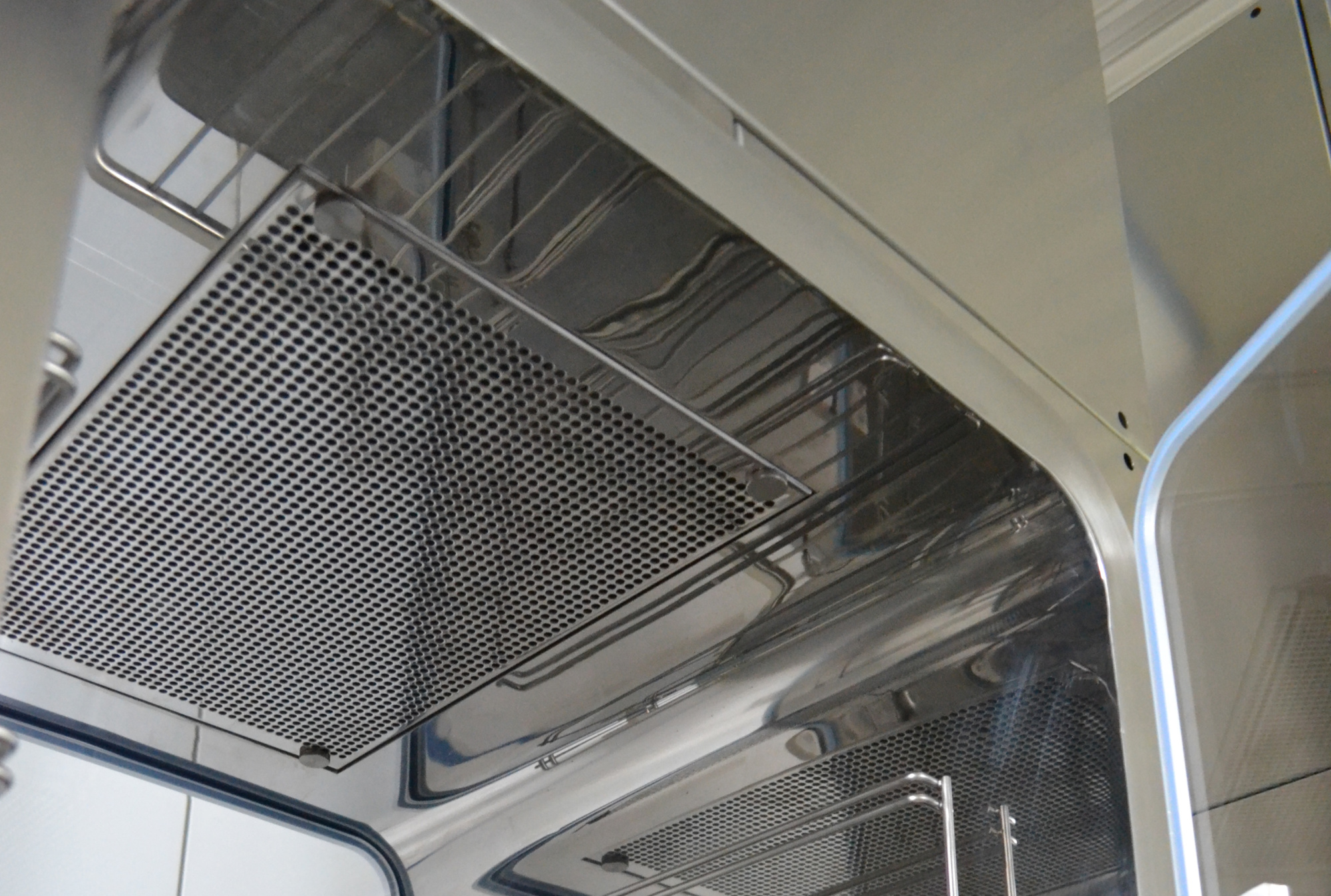

  • Mobile perforated shelves allow sterilization of the product from all sides
  • Process works at normal temperatures (at about 25 - 30 °C) and normal pressures
  • HEPA H 14 filtration in the inlet as well as the outlet of the pass-through cabin
  • Material of pass-through chambers – AISI 316L (EN 1.4404), polished surface finish with rounded corners
  • Other construction materials – AISI 304, hardened glass, silicone, POM-C, etc.
  • Compressed air of pharmaceutical quality is required
  • Possible validation of decontamination cycle

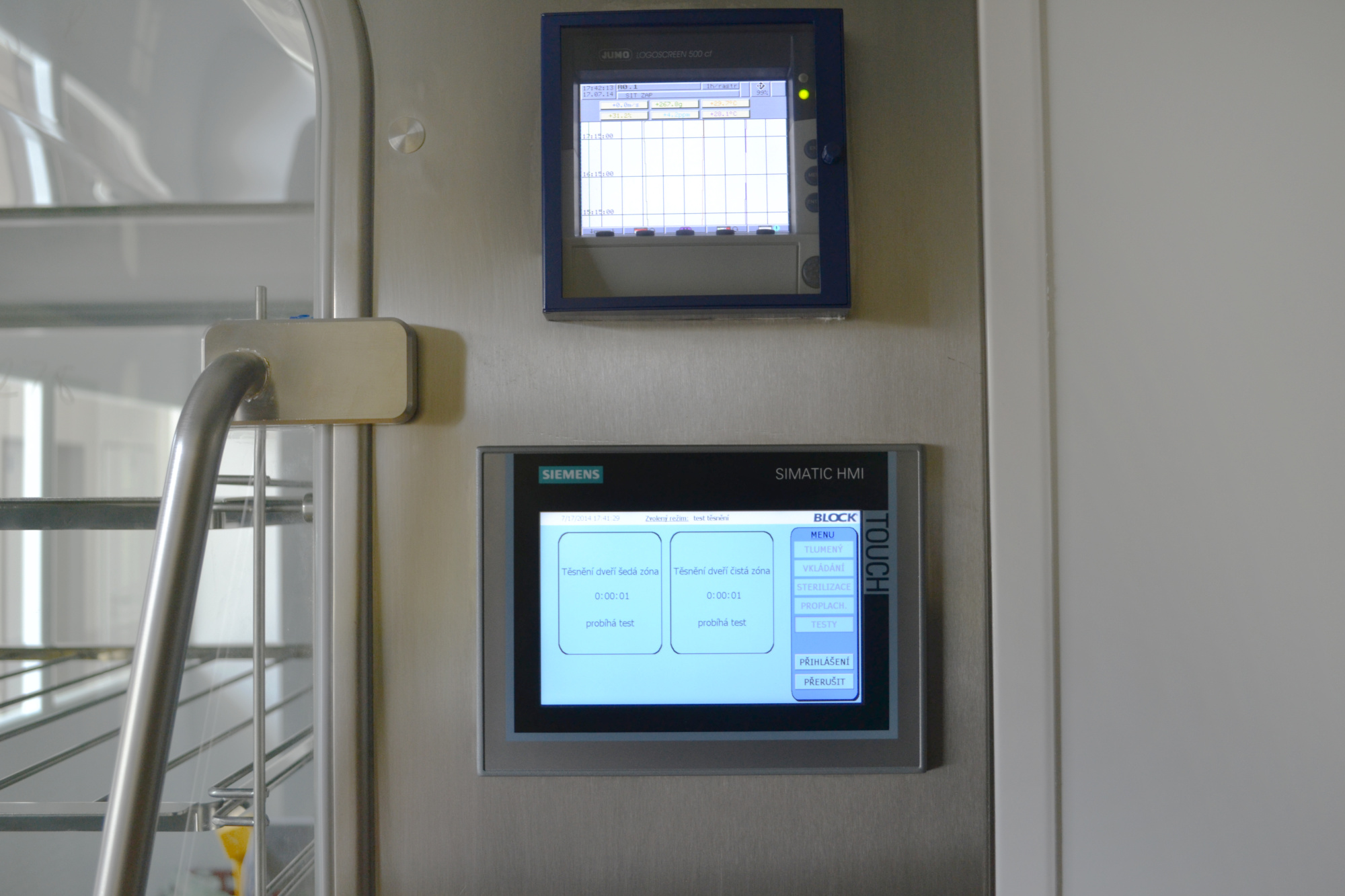

  • Possible data recording on a recording unit, printer or PC

ADVANTAGES

  • Cabin complies with the leak tightness classes pursuant to ISO 10648-2.
  • Low operating costs
  • Low-temperature decontamination
  • Quick interval of a decontamination cycle
  • Environmental protection, by-products are only water vapour and oxygen
  • Long operation life, minimal maintenance demands
  • Choice of several types and sizes
  • Easy handling and operation


×
