Metal racks 215.06
 |

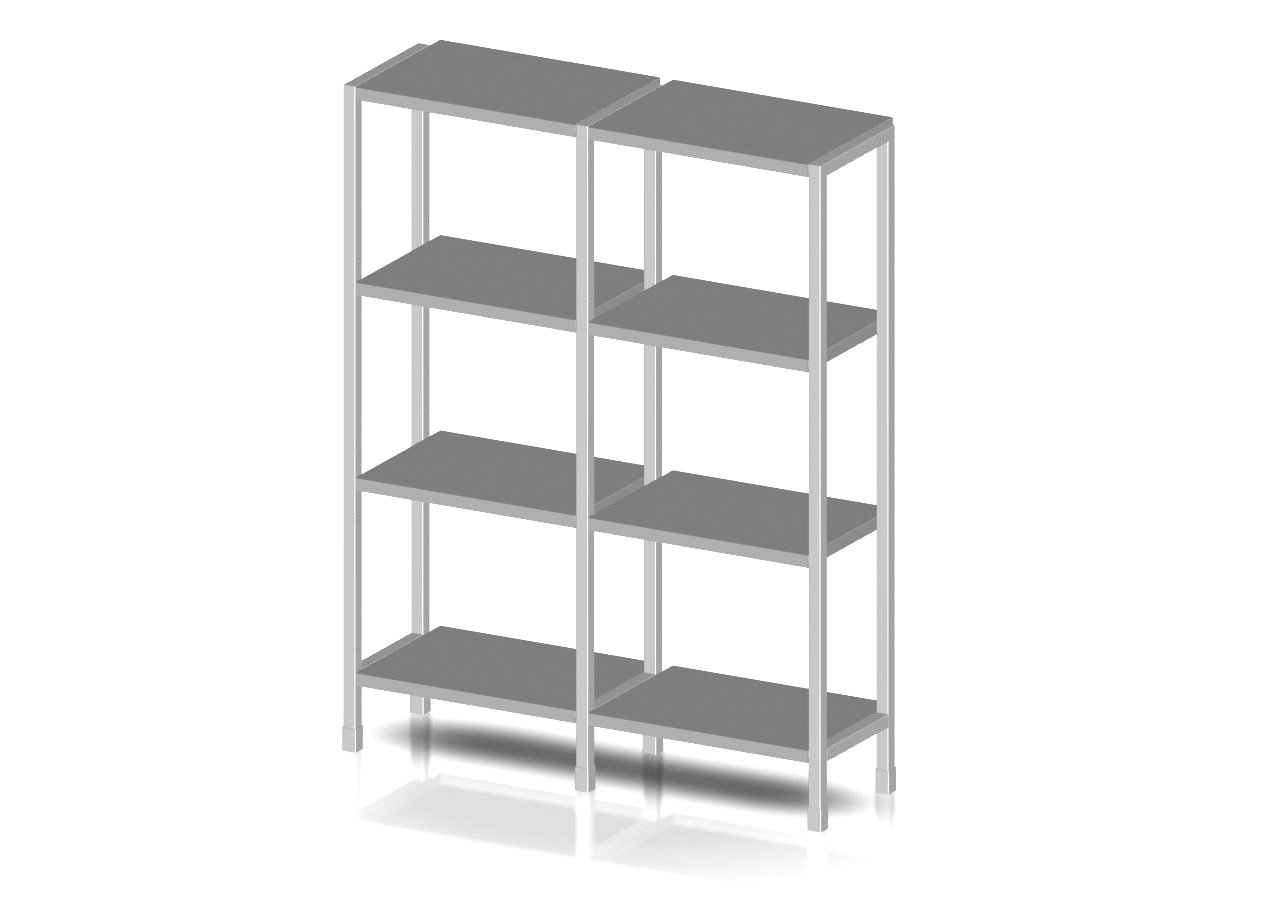

- Stainless steel racks consist of two legs and screw-on shelves. The legs are made of profile 40x2 and feature standard adjustable feet allowing to adjust the rack height (about 30 mm). The shelves are height adjustable by ± 100 mm, are made of P1.5 metal sheet and may be solid or perforated. The maximum permissible load applied onto the shelves is 50 kg/shelf; the rack has a maximum permissible load-bearing capacity of 250 kg. When setting up two or more racks, the central legs are shared by two racks.
 |
 |
 |

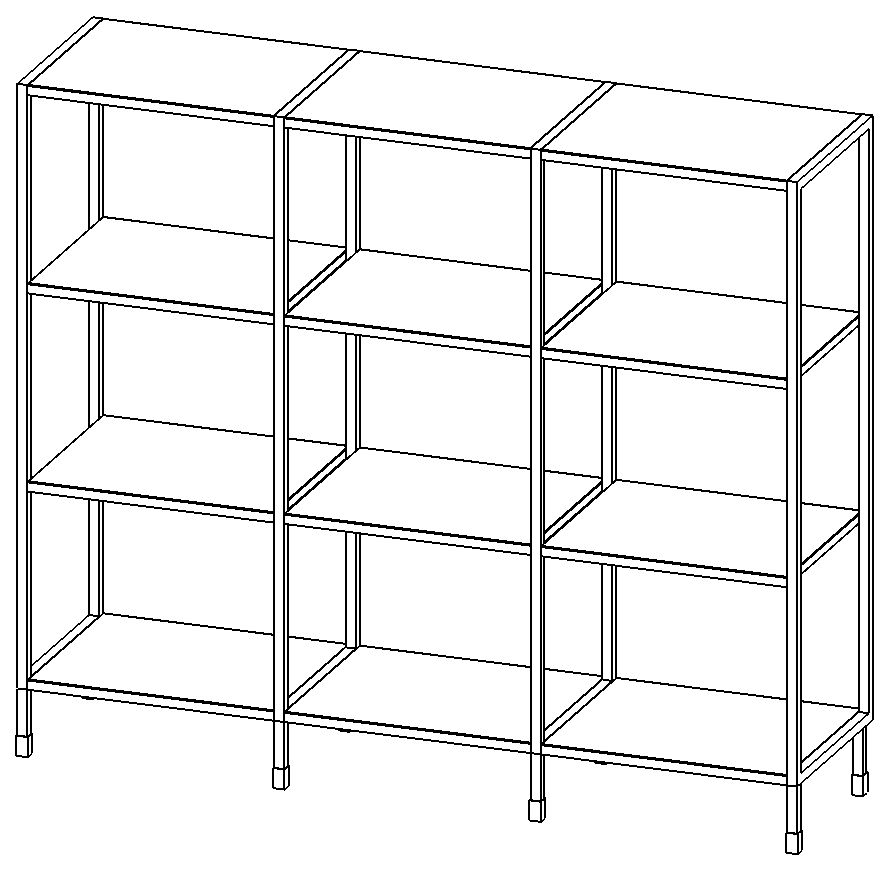

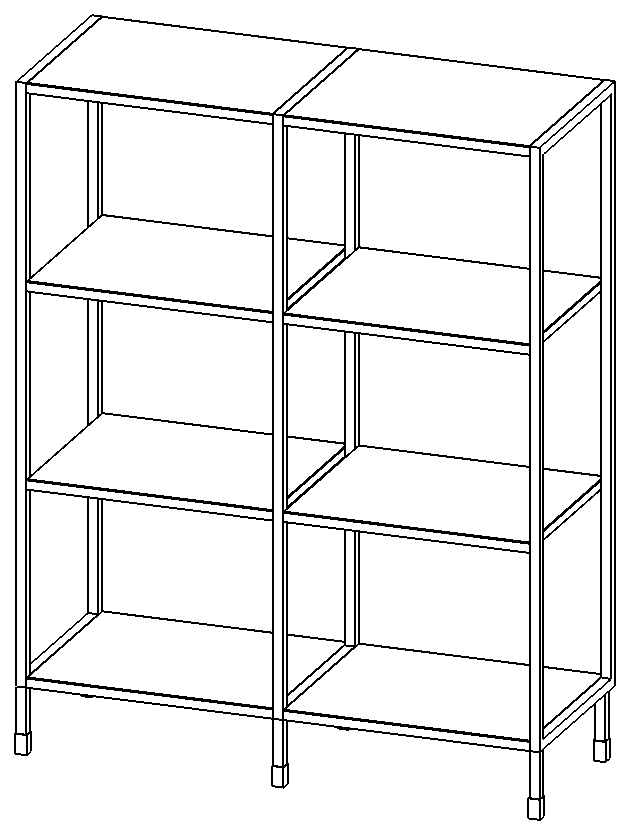

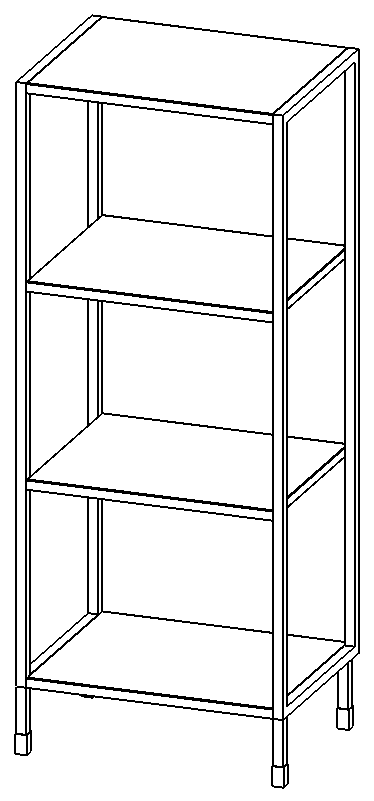

| Rack | Two-rack assembly | Three-rack assembly |
