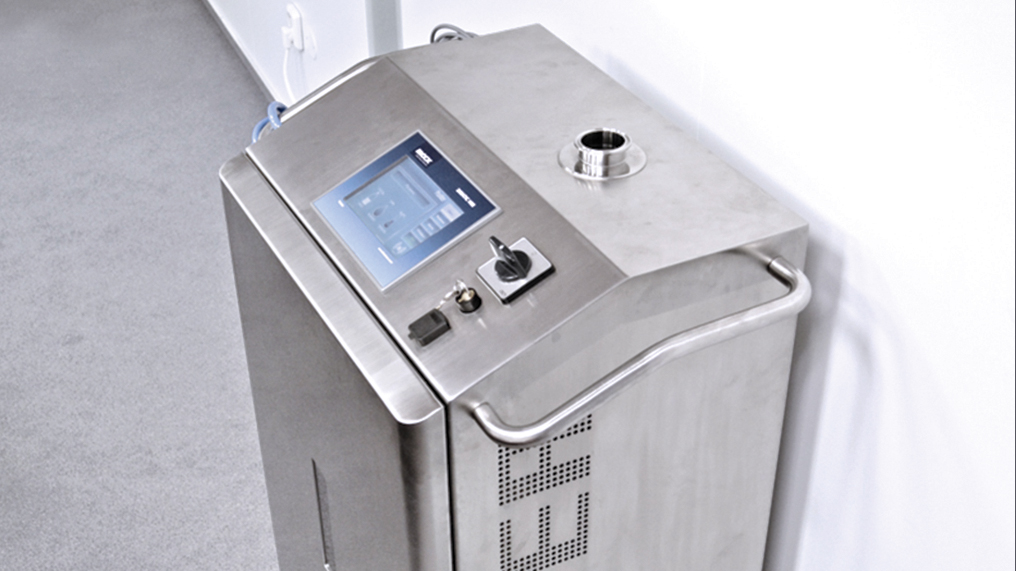

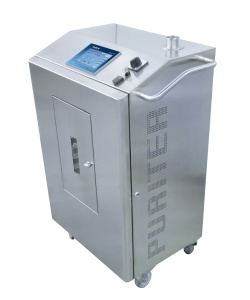

Hydrogen peroxide vapour generator - PURITER 570.01


This device is designated for the sterilization of inside surfaces by means of liquid hydrogen peroxide. The whole process is performed by means of a patented technology.

DEVICE DESCRIPTION

  • Device can decontaminate and strilize
  • Hydrogen peroxide 30% is used
  • Structural material: AISI 304 stainless steel, FIN8 grinded surface
  • Total power consumption of 2.5 kW

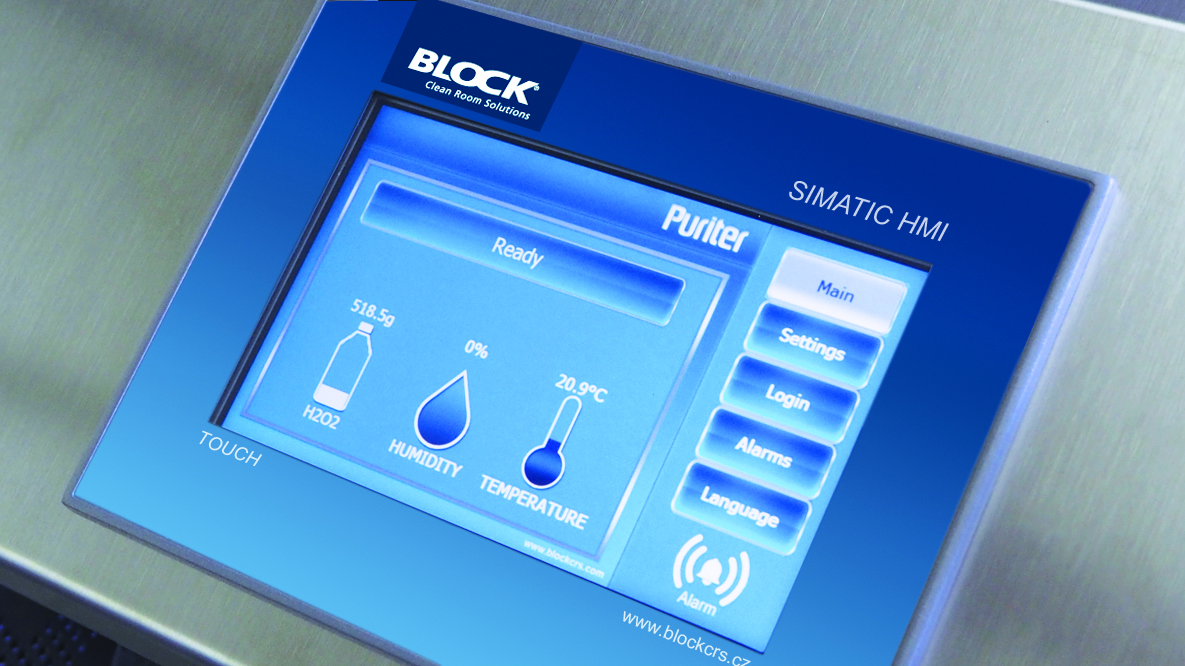

  • Operation via a touch screen with program selection
  • Control system: A SIEMENS touch panel, TP700 Comfort
    Puriter

ADVANTAGES

  • The process runs under normal temperatures (around 25 to 30 °C) and normal pressure.
  • It does not leave any toxic residues as hydrogen peroxide decomposes to oxygen and water after the decontamination.
  • The device is mobile = surfaces in various places may be decontaminated.
  • It can be connected to more devices by means of a DN50 triclamp.

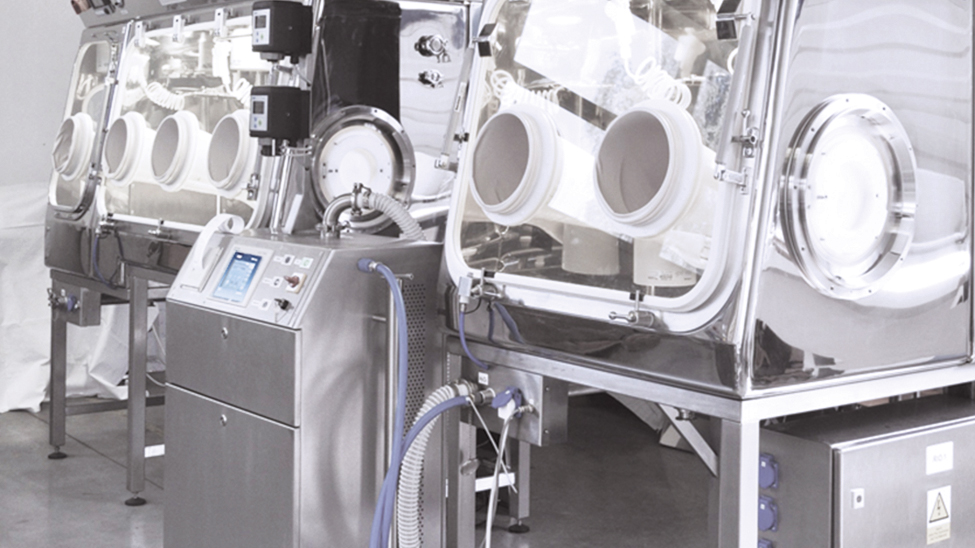

  • Possibility to integrate the device into an isolator or pass-through cabin.
  • The device is provided with a touch display with intuitive control.






TECHNICAL DESCRIPTION OF THE DEVICE

Dimensions (W x D x H)

860 x 543 x 1200 mm

Weight

approx. 85kg

Constructional material and surface treatment

AISI 304 FIN8

Total energy input

2,5 kW

Distribution network

L+N+PE 230V, AC/50Hz, TN-S

Power supply connection

plug 230V / 50Hz (the power supply cable is included)

Operating conditions

ambient temperature (10°C - 30°C)

relative humidity (max. 55%)

environment cleanliness (standard laboratory conditions)

Výstupní potrubí

DN 50 terminated with a clamp

Data recording

Datalogger by COMET SYSTEM

Control

touch screeen for programs

Control system

touch panel SIEMENS, TP700 comfort

Filling

hydrogen peroxide 30%

REQUIREMENTS FOR COMPRESSED AIR

Compressed air inlet

coil hose with quick-release coupling

Pressure

6 bar

Dew point

- 10°C or lower

Quantity needed

30÷60 m3/hod) - supply of CDA at least 50 m3/ h

Quality

oil-free

Filtration

min. 1µm
